PRISMATIC GALVANIZED MODULAR WATER TANK

PRISMATIC GALVANIZED MODULAR WATER TANK
Product Overview

Perforated edges are manufactured from galvanized sheet in DIN EN 10111 quality, with a deep drawing method. It is a modular water tank form that can be mounted on site by stacking the plates side by side and above with bolted connection. No welded joints are made during the manufacture of the water tank.

Water Storage Main Technical Features

  • Storage plates are connected to each other with M10 bolts, and silicone and epididium rubber gaskets are used to seal them.
  • On the surface of the tank module plates, there are special shapes created by the deep drawing method in the press that will prevent deformation or leakage of the sheet from water pressure.
  • All water tank reinforcements consist of galvanized steel sheet with DIN EN 10111 quality.
  • The tensioners are attached to the tank body with a separate piece, the individual piece body connection and the individual piece tensioner connection must be bolted.
  • The plates on the top and bottom of the tank are bolted construction, no welding is done at the assembly site.
  • There should be 1 cleaning cap on the tank and a man hole next to the tank. The cover is attached to the body with bolts, no welded parts should be used. In addition, the cover shape is shaped by cold forming process to meet the incoming pressure.
  • The tank top cover is provided from the material of the tank sheet, preferably plastic or polyurethane.
  • The man hole on the side is made of its own material by plastering on the tank plate, it is in a structure that will not require any additional welding process.
  • All water tank parts are easily transported and manufactured in shape and weight to be mounted on site.
  • The plastic base, which will cut the contact of the tank body with the complete concrete, is placed on the grids made of PVC or polyethylene. The grill design is manufactured to carry the weight of the tank itself and the weight of the water in it.

Water Tank Accessories

Each warehouse contains the following accessories :

  • Water tank plastic pillar or PVC membrane
  • Tank level float nozzle
  • Water tank inlet / outlet nipples
  • Water tank spherical blowdown nipple
  • Water tank air discharge apparatus
  • Water tank carrying nipple
  • Water tank interior and exterior climbing and stroke ladder
  • Tank level indicator, valves and drain cock
  • Cleaning and maintenance manholes.

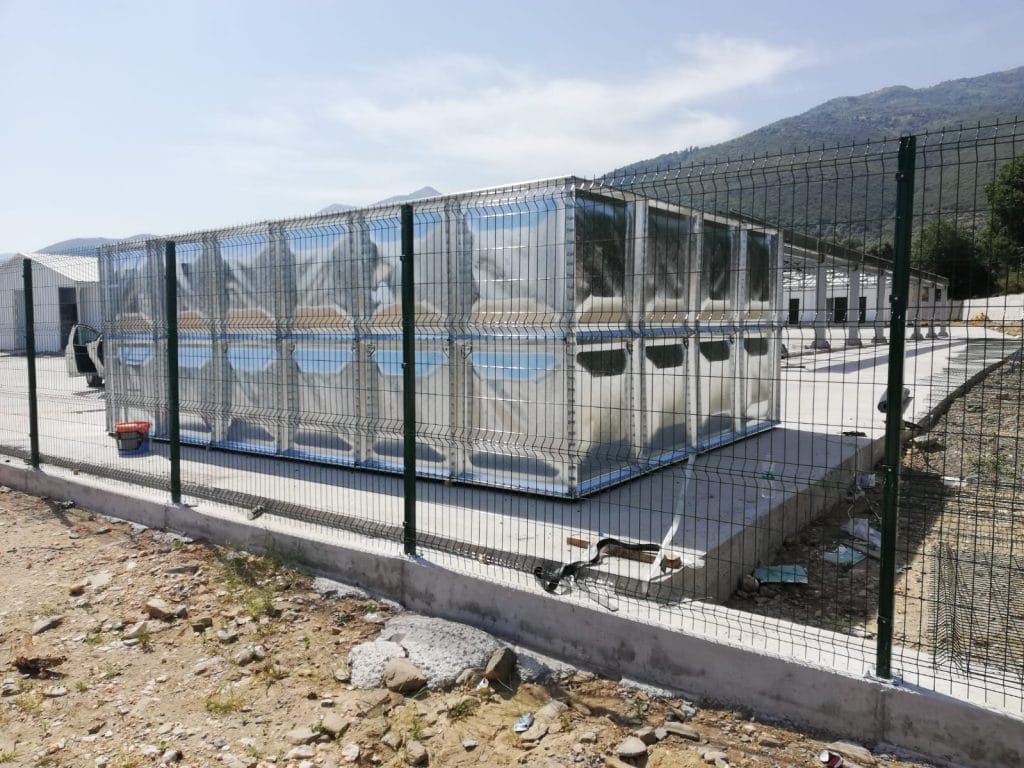

Product Images
